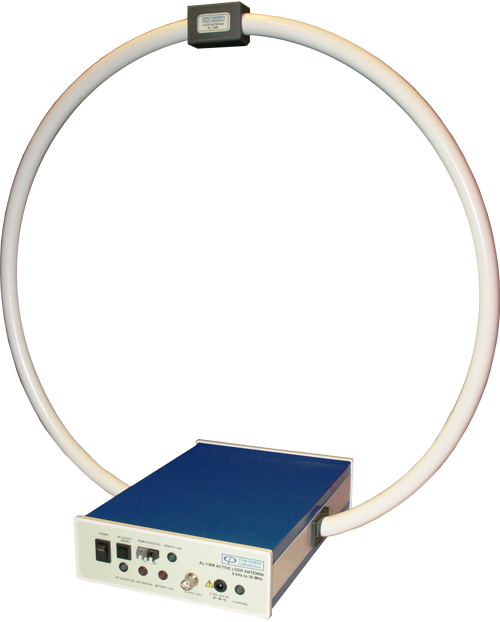

Active Loop Antenna / Com-Power / AL-130R

Frequency Range : 9 khz to 30 MHz
Loop Size : 19" x 19" (0.5 m x 0.5 m)
Nominal Impedance : 50 Ω (output port)
Battery Type : 6 VDC NimH (rechargeable)
Average Battery Life : 10 - 12 Hours
E-Field Antenna Factors : 13.4 to 16.4 (average: 14-9) [dB(m-1)]
Saturation Level : >1 V/m / >120dBμV/m (>2.65 mA/m) / >68.5 dBμA/m
Antenna Factor Variation : ±1.5 dB
RF Connecto r : BNC-type (female)
Specifications : ANSI C63.4, CISPR, EN, ETSI, etc.
Dimensions (H x W x D ) : 51 x 50 x 27 (cm)
Weight : 2.5 kg

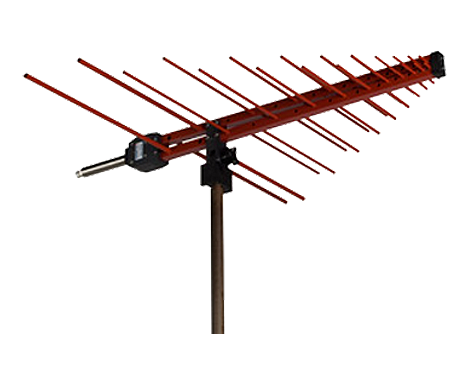

ETS-Lindgren / Log-Periodic Dipole Array / 3148B

Key Features
- High Gain Meets CISPR Cross Polarization Requirements
- Low VSWR
- Powder Coated Finish
- Individually Calibrated

Electrical Specifications
- Frequency Minimum: 200 MHz
- Frequency Maximum: 2 GHz
- Connectors: Type N (f)
- Impedance (Nominal): 50
- Maximum Continuous Power: 1 kW
- Peak Power: 1.3 kW
- VSWR: 1.2:1
- Polarization: Linear
- Pattern Type: Directional

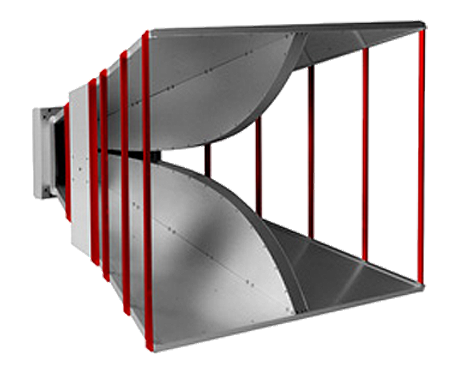

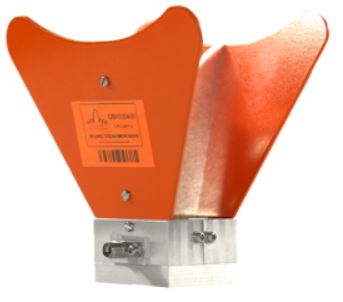

ETS-Lindgren / Double-Ridged Guide Antenna / 3106B

Key Features
- 200 MHz to 2.5 GHz Frequency Range
- Two Year Warranty
- Uniform Gain
- Low VSWR
- Individually Calibrated
- Integral Mounting

Physical Specifications
- Height: 72.9 cm (28.70 in) x Length: 97.8 cm (38.50 in) x Width: 93.3 cm (36.7 in)
- Weight : 11.8 kg (26.0 lb)

Electrical Specifications
- Frequency Minimum: 200 MHz
- Frequency Maximum: 2.5 GHz
- Connectors: Type N Female (Standard)
- Impedance (Nominal): 50
- VSWR: <1.6:1
- Pattern Type: Directional
- Polarization: Linear

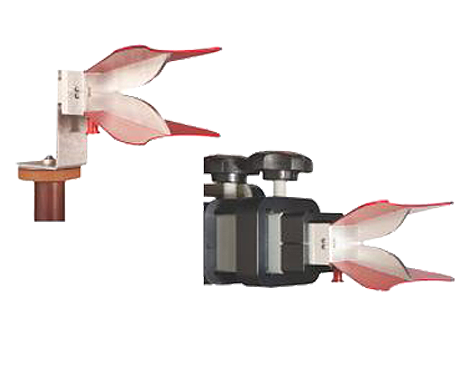

ETS-Lindgren / Double-Ridged Waveguide Horn / 3116C

Key Features
- Frequency Range 10 GHz to 40 GHz
- 20 W Power Handling Capability
- Low VSWR
- Uniform Gain
- Individually Calibrated

Electrical Specifications
- Frequency Minimum: 10 GHz
- Frequency Maximum: 40 GHz
- VSWR: 2.5:1 Maximum
- Maximum Continuous Power: 40 W (10 GHz) to 20 W (40 GHz)
- Peak Power: 60W (10 GHz) to 30W (40 GHz)
- Nominal Impedance: 50
- Connectors: Type K (F), 2.92 mm
- Pattern Type: Directional
- P-olarization: Linear

Product Options
- Custom Case
- ETS-Lindgren Offers Several Non-metallic, Non-reflective Tripods

[RS용 안테나] EMC Stacked Logarithmic-Periodic Broadband-Antenna / OVLA-00710 / 70MHz~10GHz

-Freq: 70MHz - 10GHz
-VSWR: <2
-Gain: 8.6dBi±2.3dB
-Polarization: Linear
-Impedance: 50Ωnominal
-Connector: Type N female / Type 7/16 female

[RS용 안테나] V-Log Periodic Array Antenna / OVLA-00810 / 80MHz - 1GHz

-Freq: 80MHz - 1GHz, Max 1 KW Power
-VSWR: 1.5:1 average
-Gain: 8 dBi
-Polarization: Linear
-Impedance: 50Ωnominal
-Connector: Type 7/16 female

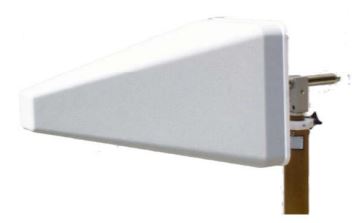

[RS용 안테나] EMC Stacked Logarithmic-Periodic Broadband Antenna OVLA-06105 / 600 MHz - 10.5 GHz

-Freq: 600 MHz - 10.5 GHz, 300W - 150W
-VSWR: <2
-Gain: 10.3 dBi +/- 1.5 dBi
-Polarization: linear
-Impedance: 50Ωnominal
-Connector: Type N female

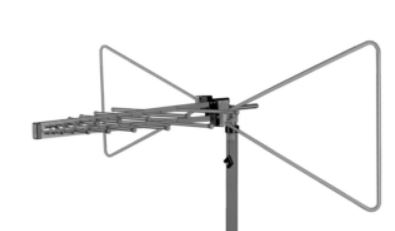

[EMI용 안테나] EMC Log-Periodic Broadband Antenna OLP-0330 / 30 MHz - 3 GHz

-Freq: 30 MHz - 3 GHz, max 100 Watt
-Isotropic Gain: typ. 6.4+/- 1.2 dBi
-Nominal Impedance: 50Ω
-Connector: N female
-Wi x L x H: 1.24 m×1.50 m×0.62 m

[EMI용 안테나] Broadband Horn Antenna OBH-10180 / 1-18GHz

-Freq: 1-18GHz
-High Gain, Wide beam

[EMI용 안테나] Broadband Horn Antenna OBH-100400 / 10-40GHz

-Freq: 10-40GHz
-High Gain, Wide beam

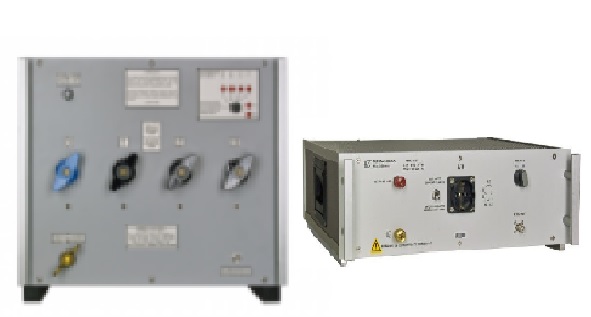

도선 임피던스 안정화 회로 LISN / 9 KHz - 30 MHz, 단상/3상, 16A ~ 1000A

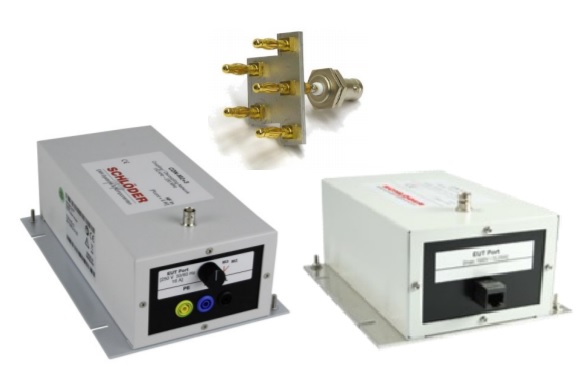

Coupling DeCoupling Network (CDN) / 150KHz - 230MHz, 단상/3상, 16A - 100A

-CDN M2/ M3/ M4/ M5
-CDN S1/ S2/ S3/ S4/ S8/ S9/ S15/ S25
-CDN AF
-CDN T2/ T4/ T8/ RJ11 / RJ45
-CDN HDMI/ CAN-BUS/ USB

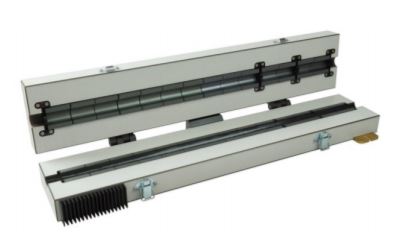

EM-Coupling clamp, De-Coupling clamp 클램프 / 10KHz - 1GHz, 20mm/35mm / IEC61000-4-6

▪ For the coupling during immunity tests according to IEC/EN 61000-4-6
▪ Frequency range 10 kHz - 1 GHz
▪ Suitable for cables up to 20 mm, for thicker cables up to 35 mm:
