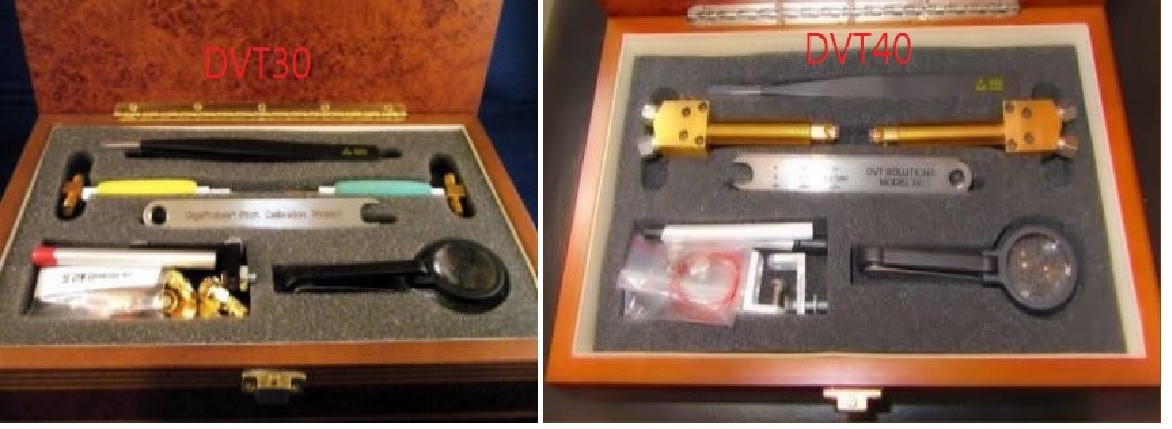

  • [GIGA PROBES] 30 GHz/ 40 GHz Fine Pitch용 TDR Probe / DVT30-1MM, DVT40-1MM

    1. DVT30/ DVT40

    -30 GHz / 40 GHz
    -True Odd Mode 100 Ohm Differential Input Impedance
    -Adaptable to 50 Ohm Single Ended Input Impedance
    -Adjustable Probe Pitch From 0 to 2mm
    -10 Mil Diameter Probe Tips
    -Fall Time <30ps, or="" 5ps="" fall="" time="" degradation="" strong="">
    -Differential Launch Discontinuity <20mv
    -Universal Probe Design, Use as Hand Probe or Mount in Micro-positioners
    -Full Set of Probe Pitch Calibration Accessories
    -Fully Balanced Differential Signals without Ground Contact
    -Variable Pitch

    2. Applications

    2-1 Time Domain Measurements
    ƒ -100 Ω Impedance measurements on PCBs, cables, backplanes, daughter-cards and connectors.
    ƒ -Use 50 Ω mode for high resolution Failure Analysis with ~1mm fault Isolation

    2-2 Frequency Domain Measurements
    ƒ -Two-Port Differential TDR/TDT Measurements for Creating SDD11/21 Return-Loss and Insertion-Loss S-Parameters.
    -Four-Port Multi-Mode S-Parameters (when used with configurable 3-pin ground collar adapter).
    o 1mm Ground/Signal pin Configurations: GSGSG, GSSG, SGS,GSS, SSG
    o Optional S-Parameters for de-embedding probe from measurements

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :
  • Oscilloscope Probe / 10:1 / Keysight, Agilent, HP, Tektronix Oscilloscope - 호환 가능

    Oscilloscope Probe / 10:1 / Keysight, Agilent, HP, Tektronix Oscilloscope - 호환 가능
    100 MHz / 200 MHz / 400 MHz / 500 MHz

    소량 / 대량 주문 가능
    구매 및 견적문의
    070-4651-0770 / sambow@sambow.com

    • Frequency Range :
    • Frequency Resolution :
    • Power Range :
    • Power Resolution :

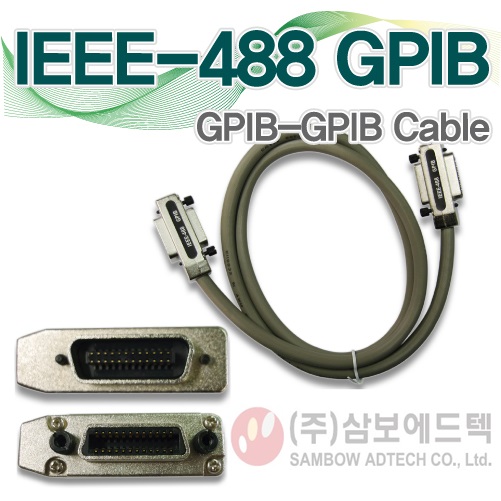

  • GPIB CABLE (신품) / IEEE-488 / Keysight, Agilent, HP, R&S, Tektronix, NI - 호환 가능
